Description
Ford Powerstroke 6.0L – Oil Rail Leak Repair Kit and Injector Seal Kit

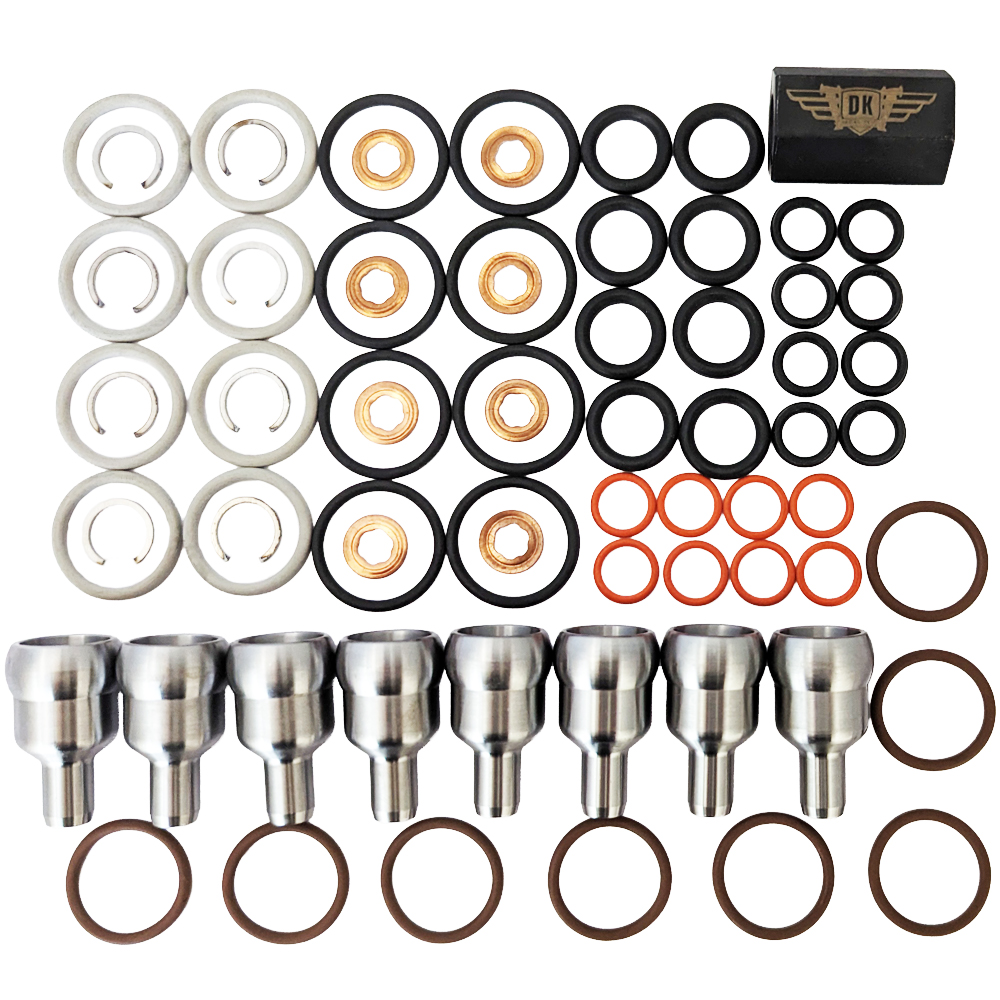

Kit Includes:
- 8x Ball Tubes
- 8x O’Ring Seals
- 8x Steel Snap Rings
- 8x Injector D-Rings
- 8x Upper Injector O-Rings
- 8x Lower Injector O-Rings
- 8x Copper Crush Washers
- 8x Outer Injector Harness O-Rings
- 8x Inner Injector Harness O-Rings
- 1x Removal Tool
High Pressure Ball Tubes connect the fuel injector to the high-pressure oil rail. All of our High-Pressure Ball Tubes include gaskets for a complete repair.
- Attaches to the fuel injectors and high-pressure oil rail
- Manufactured from high-quality materials for durability
- Direct replacement for a proper fit
Any time the valve covers are removed from a 6.0L engine you should check the oil rails for leaks. This can be done by removing the ICP sensor and pressurizing the system with shop air. You will need to command the IPR valve closed with a scan tool in order to build pressure in the system. Frequently you will find leaks between the ball tube and the oil rail. If there is a leak at one ball tube it is probably wise to replace them all. Even if you do not find any leaks during air testing, it is wise to closely inspect the nipple portion of the ball tube where it inserts into the fuel injector. Even the slightest surface imperfections here are not acceptable. Since pressure in the high-pressure oil system can exceed 3,500 PSI even slight surface abnormalities can result in problems over time.
